4 Wheels Base
Durable, Sturdy and light 4 wheels frame equipped with two seats docking diam. 25.5mm (idem Chapman and Fisher dollies seats docking) and the “Double Docking Mount” able to receive a combination of Gas Risers and/or Adapters. In addition to that, the Gaz Riser Bazooka Dolly also benefits from
- interchangeable Specifics Wheels types
- Platforms covering 360°.
- Jib’s Pyramid support.
- Push Bars
- 2 different Tracking Width
What's in a 4 Wheels Bazooka Dolly Kit?
Each item in the kit is available for individual sale. However, purchasing a whole kit includes an automatic 5% discount.

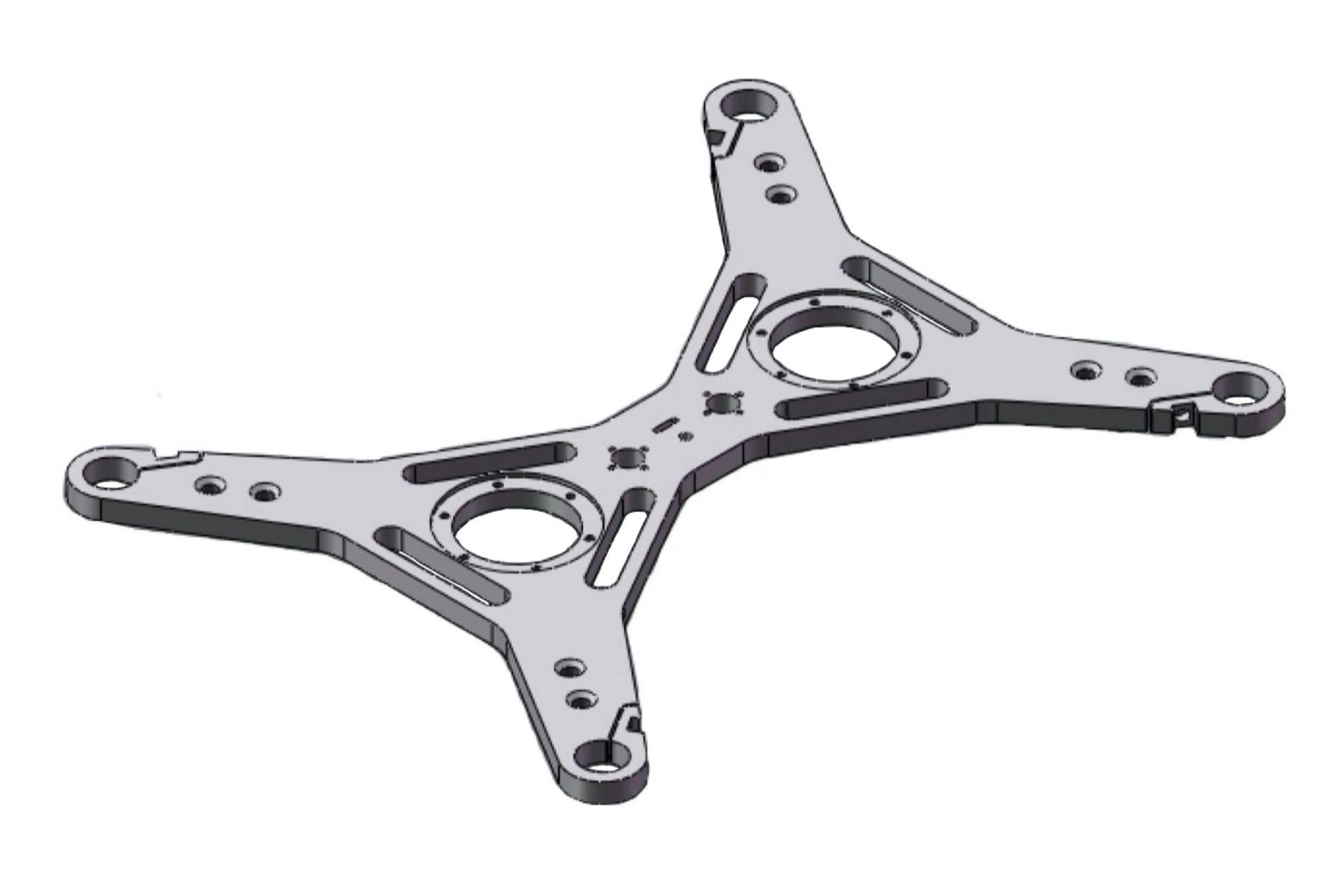

4 Wheels Bazooka Base
Art. PBZ1051
Fits on standard 620 mm and 805 mm tracks. Entirely made of aluminum, making it lightweight and easy to lift. Here is where we laser engrave your company's logo.
This base allows the placement of two docking mounts next to each other. For example, a chair can be installed on one side and a Euro coupling on the other.
Gas Riser Docking
Art. PBZ1040
Micro Gas Riser
Art. PBZ1010
Max. height: 365 mm
Min. height: 255 mm
Carries 30 kg
Short Gas Riser
Art. PBZ1020
Max. height: 620 mm
Min. height: 340 mm
Carries 30 kg
Long Gas Riser
Art. PBZ1030
Max. height: 1355 mm
Min. height: 570 mm
Carries 30 kg
Combi Wheels
Art. PBZ1061
The ideal wheels designed for both straight and curved tracks. For use on smooth surfaces.
3 pcs
Elemack Euro Coupling
Art. PBZ1090
Mitchell Head Support
Art. PBZ1100
Elemack Euro Riser Adapter
Art. PBZ1080
For stacking any of the gas risers on the Elemack Euro Coupling or on top of one another.
Front Platform
Art. PBZ1111
2 pcs
Side Platform
Art. PBZ1112
2 pcs
Long Push Bar
Art. PBZ1113
2 pcs
Short Push Bar
Art. PBZ1114
2 pcs
Ergonomic Allen Key for Bazooka Kit
Art. X7-907
Flight Case
Art. FLC213
Optional Items
Pneumatic Combi Wheels
Art. PBZ1063
The ideal wheels designed for both straight and curved tracks. For use on smooth surfaces and rough terrains.
Standard Wheels
Art. PBZ1070
Basic wheels for simple and small budgeted projects. Is not compatible on tracks. Does not include rotation locking mechanism.
Skate Wheel Adapter
Art. PBZ1052
Thanks to this adapter, our skate wheels can be mounted on the Bazooka Base. For more information on our two different types of skate wheels, go to the section of our Hi-Hat Bases.
Chair Support
Art. CBZ1010
Compatible with Chapman and Fisher seat
Stainless Steel Gas Riser Handles
Art. X6-005
You can switch the handles on the risers from regular to stainless steel ones at an additional cost.
7 pcs needed for all three Gas Risers
Singular Combi Wheel
Art. ABZ1020
Singular Pneumatic Wheel
Art. PBZ1062
